TRIPLE OFFSET BUTTERFLY VALVE
STRUCTURE : TRIPLE OFFSET
DESIGN : API 609
AVAILABLE CONNECTION : WAFER, SEMI LUG, FULL LUG, DOUBLE FLANGE
AVAILABLE FLANGE : JIS/ANSI/DIN/BS
AVAILABLE SIZE : 50A(2”) ~ 1200A(48”)
CONCENTRIC PTFE SEAT VALVE
2PCS BODY BUTTERFLY VALVE, WAFER TYPE
FLANGE RATING : JIS5K, 10K, ANSI150, PN 6, 10
OPERATION : LEVER, GEAR, PNEUMATIC, ELECTRIC MOTOR, HYDRAULIC
BODY : ALL CASTING METERIAL
DISC : ALL CASTING MATERIAL
SEAT : PTFE
STEM : ALL MATERIAL ROUND BAR
SIZE : 50A(2”) ~ 350A(14”)
DOUBLE ECCENTRIC FULL LUG
HI_PERFORMANCE BUTTERFLY VALVE, FULL LUG TYPE
FLANGE RATING : JIS 5K, 10K, 16K, 20K, ANSI 150, 300, 600, PN6 , 10, 16, 25
OPERATION: LEVER< GEAR, PNEUMATIC, ELECTRIC MOTOR< HYDRAULIC
BODY : ALL CASTING METERIAL
DISC : ALL CASTING MATERIAL
SEAT : PTFE, RTFE, PEEK, EPDM, NBR, VITON, METAL
STEM : ALL MATERIAL ROUND BAR
SIZE : 50A(2”) ~ 1200A(48”)
CONCENTRIC BUTTERFLY VALVE
STRUCTIRE : CONCENTRIC
DESIGN : JIS F 7480
AVAILABLE CONNECTION: WAFER, SEMI LUG, FULL LUG, DOUBLE FLANGE
AVAILABLE FLANGE : JIS/ANSI/DIN/BS
AVAILABLE SIZE : 50A(2”) ~ 1200A(48”)

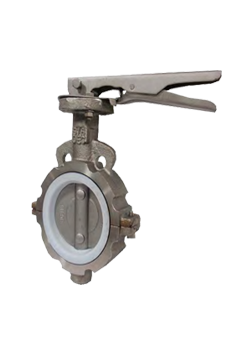

TEFLON(PTFE) LINED VALVES
General Application
Chemically High Corrosive and Toxic Media
Puri cation Chemical Plant
Pharmaceutical Industry
Adhesives , Paper Industry , Fuel Transport
FoodIndustry
Wet chloric gas
Conditioning of Material, e,g. galvanizing and pickling
Processingofore
Fuel transport and Storage
Features
The most important function of the PTFE butter y valve is its stem seal.
The pressure to keep the two sealing surfaces together is provided by an upper and lower set of spring resulting in a superior stem seal.
One-piece disc-stem design provides a high Cv (Kv) value.
Mounting Flanges according to ISO 5211 allow a close mounting of Gear, Actuator.
Self-lubricatingbearingreducefrictionandismaintenancefree.
Technical data
Pressure(bar) : Vacuum upto 10
Temperature(°C ) : -40 ~ +150
AvailableSize : 50A ~ 350A
Flange : JIS 5K, 10K, PN 10 , ASME 150#

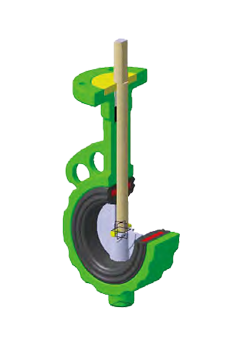

CONCENTRIC RUBBER SEAT
WILCO have design capacity to the calculation of strength “Low Friction, Long Service Life, Low Torque”
Wide Select Range : 40 ~ 1200 mm
Design Code&Standards:JIS B 2038 / JIS F7480 / ASME B 1634 / AWWA / API 609
Face to Face : According to JIS B 2002 / According to ASME B 16.10
Flange Drilling : According to JIS B 2003 / According to ASME B 16.10
Top Flange : According to ISO 5211
Style: Wafer / Semi-Lug / Full Lug / Flange(Long & Short)
HIGH PERFORMANCE & CARGO VALVES
Construction
Body : DuctileIron, CarbonSteel, ALBC, Stainless
Shaft : A276-304, 316, A564-630, K-Monel
Disc : Stainless, ALBC
Seat : EPDM, NBR, Viton, Silicone, PTFE, Neoprene
Packing : NBR, PTFE, Viton, Graphite
Bushing : SS316+PTFE, Bronze
Retainer : Stainless, C.S+Crcoat, ALBC
PTFE SOFT SEAT HP VALVE

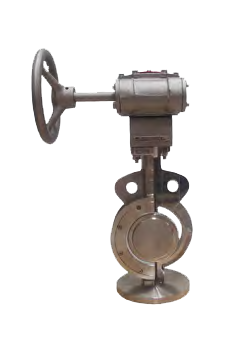

RUBBER SEAT CARGO VALVE
FIRE SAFE SEAT VALVE
